Product Details:
|
| Overall Size: | 4730×1670×2400mm | Wheel Base: | 3050mm |
|---|---|---|---|
| Seats: | 2/3 | Curb Weight: | 1599kg |
| Highest Speed: | 80km/h | Rated Mileage: | WLTC 280km |
| Rated Loading: | 871kg | Motor: | Permanent Magnet Synchronous Motor |
| Motor Output Power: | 30/60KW | Battery Type: | Lithium Iron Phosphate Battery |
| Battery Capacity: | 38.7KWH | ||
| High Light: | EV refrigerated box truck,1.5T refrigerated box truck,1.5T refrigerated cargo truck |
||

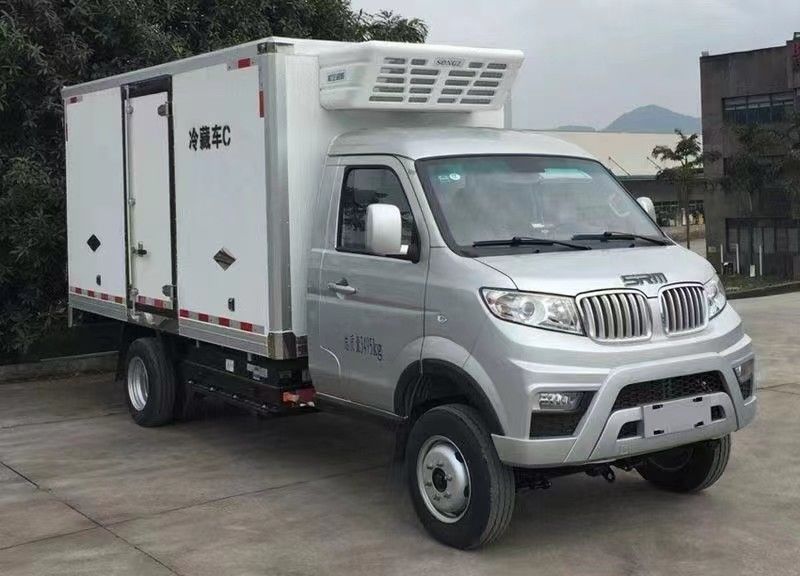

Refrigerated Mini Elctric Truck 1.5T Loading Freezer Truck For Fresh Food Delivery
Product Detailed Specification:
| Chassis model | JKC1034D0X0BEV | Chassis brand | SRM | |
| Overall dimensions | 5775×1780×2665mm | Wheel base | 3600mm | |
| Front/rear wheel track | 1480/1335mm | Front/rear suspension | 680/1495mm | |
| Approach/departure angle | 38/23 | Maximum speed | 80km/h | |
| Cab | Configuration | Single row cab,2passengers,Air Conditioner, Remote Lock, Reversing Vision | ||
| Color | White,other color is optional | |||
| Motor& Battery |
Model | TZ154XS309 | ||
| Rated power | 40kW | |||
| Peak Power | 70KW | |||
| Max.torque | 165N·m | |||
| Battery Capacity | 3707ml | |||
| Battery Chiarging | Fast & Slow | |||
| Manufacturer | Jing-Jin Electric Technology Co., Ltd | |||
| Tire | Size | 185R14LT 6PR, tubeless tyres | ||
| Number | 6pcs | |||
| Front axle | 1100kg | |||
| Rear axle | 2395kg | |||
| Drive form | 4x2 | |||
| Number of leaf spring | 5/7+4 | |||
| Steering device | Power assisted steering | |||
| Steering wheel | Left hand drive | |||
| Van body structure parameters | ||||
| Van dimensions | 3520×1650×1580mm | |||
| Van material(inner) | Glass Steel | Van material(outer) | Glass Steel | |
| Insulation Layer | Polyurethane foam | Thickness of insulation layer | 6.5CM | |
| Temperature | 3℃ | |||
| Standard configuration | Chassis,sub frame,van body(glass steel panel+6.5cm polyurethane foam& Polystyrene insulation),stainless steel locks,stainless steel door frame,with overhead light and anti collision device,domestic refrigeration unit; Double opened back door and one swing side door. | |||

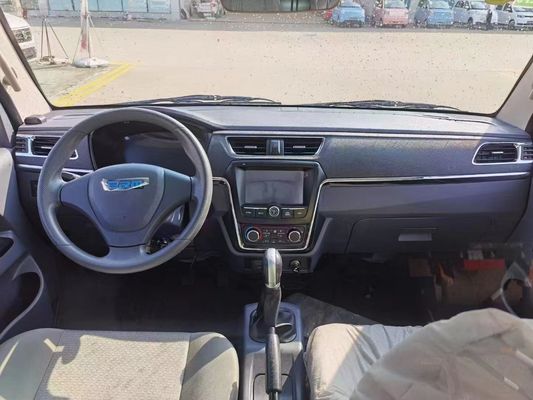

Products HD pictures:
