Product Details:
|
| Model Number: | SYQE5185ZYSD6 | Overall Dimension:: | 6443×2050×2650mm |
|---|---|---|---|
| Driving Form: | 4X2 Driving | Total Weight: | 7360kg |
| Curb Weight: | 5400kg | Wheel Base: | 4200mm |
| Cargo Box Volume: | 6cbm | Front Tread: | 1525mm |
| Rear Tread: | 1498mm | Chassis Model: | EQ1075SJ3CDF |
| Engine Type: | Diesel Engine | Emission Level: | Euro V |
| Max Speed: | 110km/h | Engine House Power: | 127hp |
| High Light: | 6CBM Garbage Disposal Truck,Dong Feng Garbage Disposal Truck,Dong Feng waste compactor truck |
||
Garbage Collection Truck Transfer 6m3 loading Vehicle Garbage Compactor Truck
DONGFENG Trucks Features
to read and reach. The steel structure is reinforced to prevent the cab from being damaged by unexpected debris fall.
To provide the driver and passengers a stronger security, we made sure to meet the European collision standards, the most
Garbage Collection Truck detailed specifications
| Vehicle parameters | ||||
| Vehicle Model | SYQE5185ZYSD6 | Vehicle Type | Gabage Compact Truck | |
| Overall dimensions(mm) | 6443×2050×2650mm | Curb weight | 5300kg | |
| Total Veight | 7360kg | Rated Capacity | 1930kg | |
| F/R overhang | 1055/800mm | Gabage Volume | 6cubic | |
| Chassis parameters | ||||
| Chassis model | EQ1075SJ3CDF | Chassis brand | DFAC | |
| Front Wheel Track | 1525mm | Wheel base | 2700mm | |
| Rear wheel track | 1498mm | Axle Number | 2 axles | |
| Approach/departure angle | 27.7°/15° | Maximum speed | 110km/h | |
| Cab | Configuration | Single row cab,2~3 passengers allowed, air conditioner. | ||
| Color | White, or as request | |||
| Engine | Model | D20TCIF1 | ||
| Emission | Euro V | |||
| Type | Diesel Type, in-line 4cylinders | |||
| Rated power | 93kWkw/127hp, rated power speed 3200rpm | |||
| Displacement | 2.2L | |||
| Max.torque | 350N.m | |||
| Tire | Size | 7.00R16 | ||
| Number | 6pcs | |||
Product Features:
-The vehicle can be equipped with a rear sealing cover device. ABS model/manufacturer: ABS/ASR-12V-4S/4M/Xiangyang Dongfeng Longcheng Machinery Co., Ltd. The corresponding relationship of engine/fuel consumption value L/100km: D20TCIF1/16.2, YCY24140-60/16.2, CA4DB1-11E6/16.2, ZD30D16-6N/16.2, CY4BK461/16.2, CY4BK161/16.2. Optional front mask, front bumper and front combination lamp. Optional left and right fuel tank position

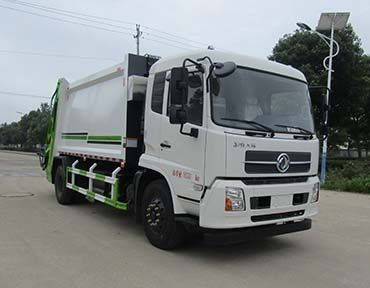

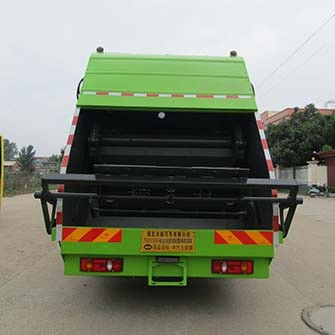

Products HD Picture
FAQ
Q:How about the delivery time?
A: Most of our trucks are all have in stock ,We can delivery to you within 7 days after order confrimed
Q:How about shipping ?
A: Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container, small type can shipping by container ,
Pls contact us to get a shipping quotation .
Q: How many trucks does your factory produce per years?
A: Almost 3000 units
Q: How about your product After-sales service system?
A: Our main export country have accepted after-sales service,some of country used the third department service.
Q: Do you accept Custom orders? What's is your MOQ order?
A: Yes, we do, our MOQ is depends on exact model, mostly is 1unit.
Q:Which country do you have exported to?
A: our special trucks can be found in many parts of the world, such as Russia, Ukraine,Uzbekistan,Jordan, Chile, Brazil, Thailand, Malaysia, Lebanon etc, and gain good reputation from local market.
Q: Can I Customize vehicles?
A:We could also customize the vehicles according to the demand of the end markets, technical and equipment modification as per demand.
