Product Details:
|
| Overall Dimension: | 3584*1475*1666mm | Wheel Base: | 2455mm |
|---|---|---|---|
| Wheel Track: | 1300/1295mm | Doors/Seats: | 5doors/seats |
| Min. Clearance: | 150mm | Motor Type: | Pamernent Magnet Synchronous Motor |
| Battery Type: | Lithium Iron Phosphate Type | Front Suspension: | McPherson Independent Suspension |
| Rear Suspension: | Torsion Beam Non Independent Suspension | Power Capacity(kW·h): | 31.45 (kwh) |
| Driving Range(NEDC): | 320km | Charging Time: | 12h |
| Max Output Power: | 35kw | Max. Output Torque: | 125N·m |
| High Light: | Fwd small electric suv,Lingbox small electric suv,Fwd lingbox mini ev |
||
Range 320km 35kW motor power 4 seat FWD electric hatchback LINGBOX max speed 101km/h new energy
Product Detailed Specification:
| MODEL | BOX(ZWJ) | ||
| Dimension | Overall dimension(L*W*H) | 3584*1475*1666mm | |
| Wheel base(mm) | 2455 | ||
| Front Wheel Track(mm) | 1300 | ||
| Rear Wheel Track(mm) | 1295 | ||
| Curb weight(kg) | 970 | ||
| Max vehicle speed (km/h) | 101 | ||
| Motor | Motor type | Permanent magnetic synchronizer | |
| Max Power(kw) | 35 | ||
| Max torque(Nm) | 125 | ||
| battery | Battery type | Ternary lithium battery | |
| Power Capacity(KWH) | 31.45 | ||
| Driving Mileage (CLTC) | 320km | ||
| Charging | Fast/Slow Charing | 1.2h/15h | |
| Chassis | Front Suspension type | McPherson independent suspension | |
| Rear Suspension type | Torsion beam non independent suspension | ||
| Driving Form | Front drive | ||
| Steering | Power Assistance Steering | ||
| Safty Configuration | Air bag | -- | |
| TMPS | Tire pressure alarm | ||
| Safety Bel Reminder | Driver Seat | ||
| ISOFIX Children Sests interface | Y | ||
| ABS+EBD | Y | ||
| Tyre and Brake | Brake(F/R) | Disc/Drum | |
| Parking Form | Hand brake | ||
| Reverse Radar | Y | ||
| Reversing Version | Y | ||
| Tyre type | 165/65 R14 | ||
| Rim | Steel | ||
| Other Confirguration | Seats | Fabric/Imitation leather(Optional) , Manual adjustable | |
| Air Condition | Manual Type Front A/C | ||
| Widows | Electric type for whole car | ||
| Central Control Screen | 9", Touch LCD screen | ||
| Lamp System | Halegon Main Lamp& Rear Lamp | ||
| Color Options |  |
||
Product Description:
LING BOX Focus on a00-a0 electric cars, occupy the fastest-growing new energy blue ocean market, and target Youg Mothers
and young people. Provide ultra-high cost-effective products and potential long tail income in the field of personalized auto parts
in the future.
Product Feature:
- 2022 New Box, Big four seat comfort electric vehicle;
- Maximum 320km endurance, Long journey no warry;
- Standard ABS anti lock system (EBD) braking force distribution system;
- Bluetooth, music, radio, multi-mode play, make travel funny;
- Retro cute, short faced cute frog, full face, lower visual posture;

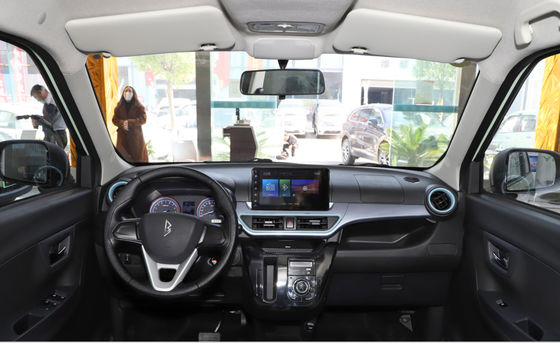

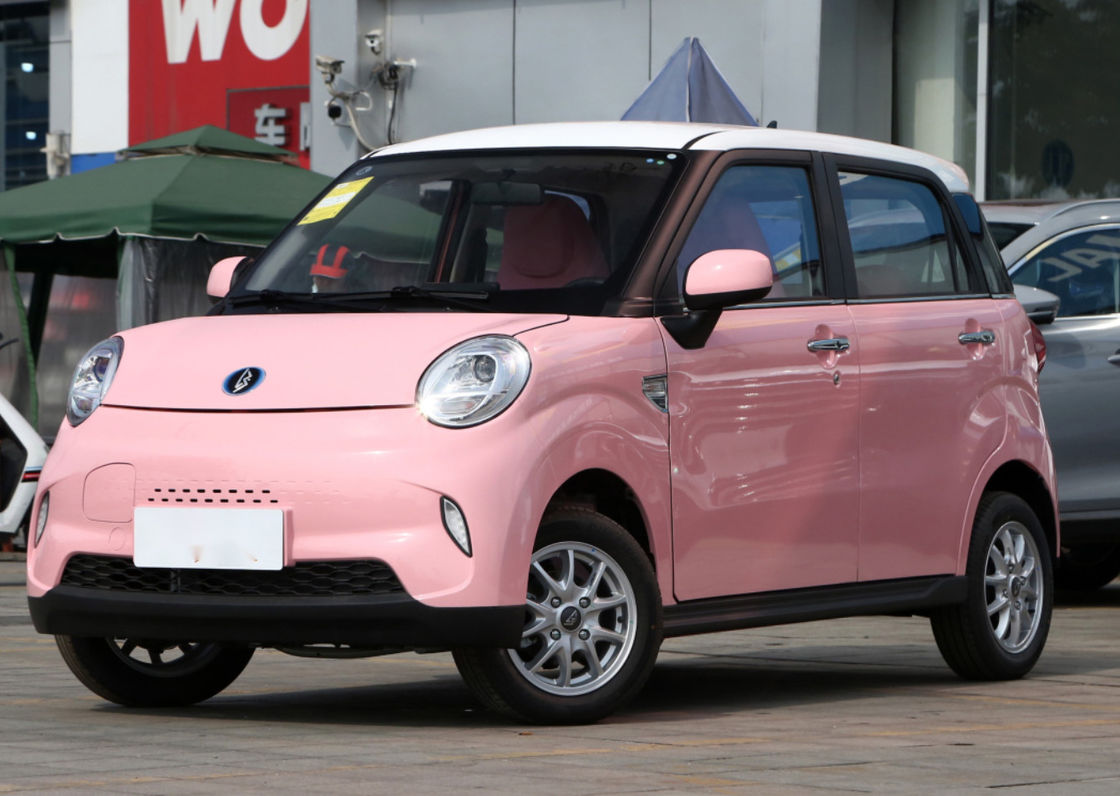

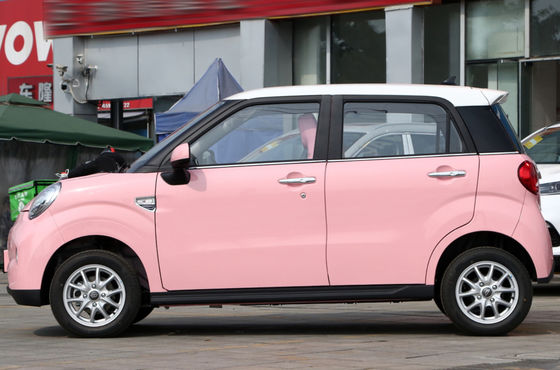

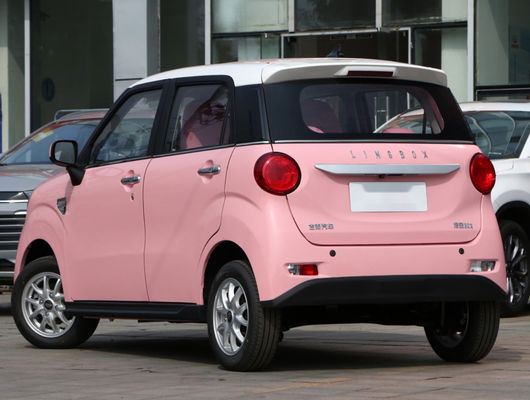

Products HD pictures:
Company Profile:
Wuhan Essence Tech Co.,Ltd is a trading comany who has been focus on Automotive exporting more than 5years. We cooperates deeply with many big and famous Manufacturers of Vehicle sush as DONGFENG, Changan, Chuanqi and Chevrolet, on the sales of their Passenger cars, commercial cars and also the special use vehicles. Basing on the hard work during past years, we have successfully exported the full series vehicle of these brands to Egypt, Colombia, Kazakhstan, Russia, Algeria, Lebanon, Sudan and Jordan etc. countries which have gained good reputation locally. It has gained a good reputation locally.
From the first day of setting up, we always adhered to the to the principle of "providing customers with cost-effective products" and the concept of " Win-Win with Customers", to make more people around the world to know, to understand, recognize and support Chinese Vehicles.
We adopt 5A mode management , control the products quality strictly, set up the complete sourcing and supplying system, to make sure our customers can be served with the shortest delivery time, most competitive price and best quantity vehicles. Now, at this moment of the alternation of new and old energy vehicles, we are willing to cooperate with the cooperators all over the world to create our new time together.
Packing and Shipping:
FAQ:
Q. Do you have any MOQ limit for order?
A: MOQ: for ONE 40’ HQ quantity.
Q:How about the warranty?
A:One year for electric model and key parts.
Q:How about the delivery time?
A: Most of our trucks are all have in stock ,We can delivery to you within 7 days after order confrimed
Q:How about shipping ?
A: Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container, small type can shipping by container ,
Pls contact us to get a shipping quotation .
Q. How to proceed an order ?
A: Firstly let us know product your are interested in.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms and places deposit for formal order.
Q: How about your product After-sales service system?
A:Our main export country have accepted after-sales service,some of country used the third department service.
Q: Do you accept Custom orders? What's is your MOQ order?
A:Yes, we do, our MOQ is 1 set.
Contact Person: Jackie Shaw
