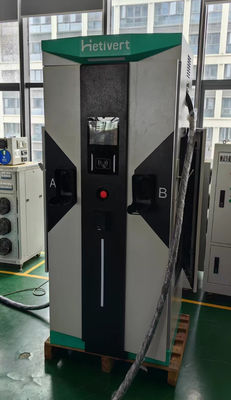

Commercial DC EV Charging Pile Floor Mounted 160kW IP54 Fast With UV Screen

Commercial DC EV Charging Pile Floor Mounted 160kW IP54 Fast With UV Screen
Commercial DC EV Charging Pile Floor Mounted 160kW IP54 Fast With UV Screen Commercial DC EV Charging Pile Floor Mounted 160kW IP54 Fast With UV Screen

Large Image :  Commercial DC EV Charging Pile Floor Mounted 160kW IP54 Fast With UV Screen

Product Details:
Place of Origin: China
Brand Name: N/A
Certification: TUV CE
Model Number: EVP160
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD5000~25000/unit
Packaging Details: 1units/pck
Delivery Time: 15days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs/month
Contact Now

Commercial DC EV Charging Pile Floor Mounted 160kW IP54 Fast With UV Screen

Description
Model Nunber: EVP160 Type: DC
Input Voltage: 400V+10% Input Current: 320A
Output Voltage: 250-1000Vdc Max Output Current: 250A
Max Output Power: 160KW Max Effeciency: 94%
Highlight:

IP54 EV Charging Pile

,

160kW EV Charging Pile

,

160kW DC EV Charger

Commercial EV charger Floor-mounted 160kW IP54 DC EV fast electric car charging station with UV screen

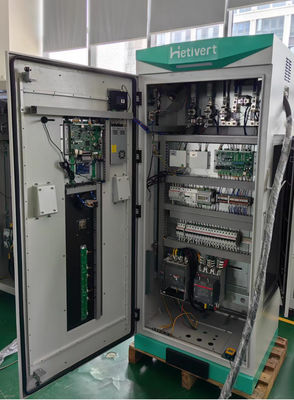

Products HD pictures:



Commercial DC EV Charging Pile Floor Mounted 160kW IP54 Fast With UV Screen 0







Product Feasures:

  • LED light to make easy access during night
  • Each gun can generate 60kW charging power independently
  • One gun can generate 120kW charging power along
  • Convenient touch screen and 4G communication
  • Nayax and other 3rd payment support
  • OCPP1.6J and OCPP2.0 for the future
  • CE certification by TÜV
  • 4m/7.5m cable length optional
  • Optional PTB version to comply with German calibration law
  • Optional -35℃ (-31F)cold climate version



Techanical Ratings
AC Input
Connection type U/V/W+N+PE
Input voltage 400V±10%
Input frequency 50Hz/60Hz±10%
Rated power 160kW (the actual charging power and current would be lower and decided by the vehicle connected.)
Max input current 320A
Power factor ≥0.98, Maximum value
THDi <5%, Best case
Max. efficiency >94%
DC Output
Charging interface Port A: CCS2 Port B: CCS2, IEC 62196-3, DIN70121
Communication with EV DIN 70121, ISO 15118
Output voltage range 250-1000Vdc
DC Output - When both guns are used for charging at the same time
Maximum output current 250A , each gun
Maximum output power 60kW, each gun
Rated output voltage1 400Vdc
DC output 一 When only single gun is used
Maximum output current 200A
Maximum output power* 120kW
HMI
Touch screen 8-inch touch screen
RFID2 IEC/ISO14443A/B, Mifare/Felica optional
Payment terminal Nayax VPOS touch
Network 4G modem, Ethernet port *1
Protocol for backend3 OCPP 1.6J
Ambient Conditions
Operating temp, range -10°C~+50°C
Operating humidity 5-95%
Operating altitude ≤2000m
Mechanical Data
Dimension (W*D*nf 750*620*1800mm
Degree of protection IP54
Cooling method Force air cooling
Charging cable length 5.0m
Noise level ≤75dB
Weight 180kg
Standard and Compliance
Standard IEC 61851-1, IEC 61851-23, IEC 61851-24, IEC 62619-3
IEC 61851-21-2, IEC 61800-2, IEC 61800-4
Certification mark TUV CE
