Product Details:
|
| Overall Dimension: | 7850X2500X2950mm | Driving Form: | 4*4 |
|---|---|---|---|
| Total G. Weight: | 16490kg | Wheel Base: | 4200mm |
| Curb Weight: | 7300kg | Payload: | 8995kg |
| Max Speed: | 89KM/h | Front Overhang: | 1440mm |
| Rear Overhang: | 1910mm | Fuel Type: | Diesel |
| Engine Model: | B6.2NS6B210 | Gear Box: | 6Forwarder Gears,Manual Type |
| Max Power: | 154kw/210HP | Emission Level: | Eur.V |
| Max Torque: | 850N.m | Displacement: | 6.2L |
| Cab: | One & Half Row,Low Roof | Tyres: | 10.00R20,6pcs |
| High Light: | 4WD Dump Truck Heavy Duty,10T Dump Truck Heavy Duty,Dump 4wd lorry |
||
Euro 6 Emission 4WD Off-road Van Truck, 4WD offroad Cargo Truck 10T loading Capability
Offroad Cargo Truck Product Detailed Specification:
| Model | DFV2163GP6D |
| Overall Size(mm) | 7850X2500X2950mm |
| Driving Form | 4x4 |
| Wheel Base(mm) | 4200mm |
| Wheel Track(mm) | 1857/1860mm (F/R) |
| Cargo box dimension | 5200x2350x600mm |
| G.V.W | 16490kg |
| Curb weight | 6800kg |
| Rated Loading Weight | 9495kg |
| Max Speed(km/h) | 89km/h |
| F/R Overhang | F/R 1440/1910mm |
| Fuel Type | Diesel |
| Cab | 3/2 seats, flat roof |
| Engine Model | B6.2NS6B210 |
| Power(Kw/HP) | 154 |
| Maximum torque(N.m) | 850 |
| Displacement(L) | 6.2L |
| Emission Standard | Euro V |
| Transmission | 5Forwarder Gears, Manual type |
| Axle Loading(kg) | 6000/10490kg |
| Tires | 10.00R20,6pcs |
| Braking System | Double circuit pneumatic braking system |

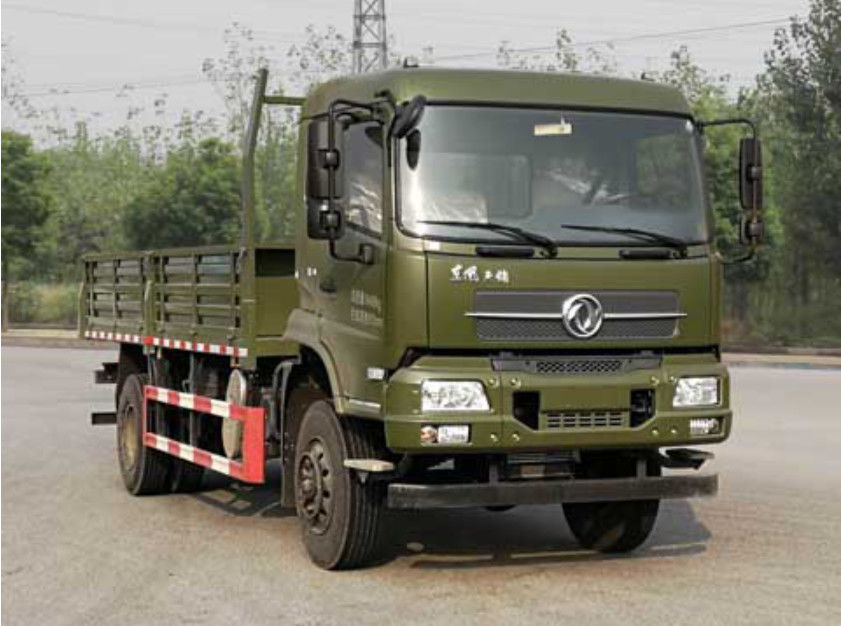

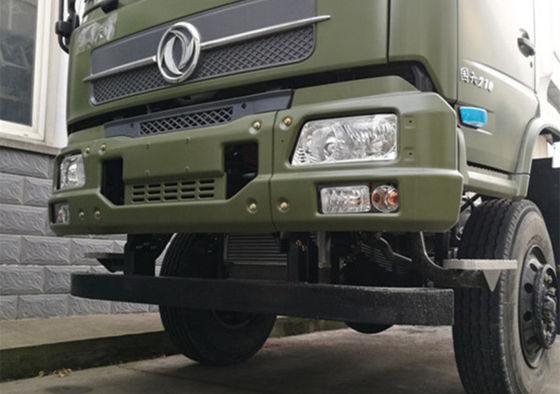

Products HD pictures:
Products Description:
Dongfeng Tianjin D530 one row and a half cab, 4 × 4 drive, Cummins b6.2ns6b210 national six engine 210 HP, torque: 850N.m/1100-1700rpm, displacement 6.2L, six gears transmission, Dongfeng Dena axle, front drive axle 4.5t, rear axle 10t, 10.00R20 tires, wheelbase 4500mm/4700mm, girder 280mm, electric glass, direction assistance, air brake, ABS, automatic headlight adjustment, automatic adjustment arm, optional original air conditioner. The car size of 5.2m and 5.4m can be selected
Packing and Shipping:
FAQ:
Q: How many trucks does your factory produce per years?
A: Almost 3000 units
Q:How about the warranty?
A:One year and exact depends on final model~
Q:How about the delivery time?
A: Most of our trucks are all have in stock ,We can delivery to you within 7 days after order confrimed
Q:How about shipping ?
A: Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container, small type can shipping by container ,
Pls contact us to get a shipping quotation .
Q: How about your product After-sales service system?
A: Our main export country have accepted after-sales service,some of country used the third department service.
Q: Do you accept Custom orders? What's is your MOQ order?
A: Yes, we do, our MOQ is depends on exact model, mostly is 1unit.
Q:Which country do you have exported to?
A: our special trucks can be found in many parts of the world, such as Russia, Ukraine,Uzbekistan,Jordan, Chile, Brazil, Thailand, Malaysia, Lebanon etc, and gain good reputation from local market.
