Product Details:
|
| Overall Dimension: | 7375X2540X2800mm | Driving Form: | 4*4 |
|---|---|---|---|
| Wheel Base: | 3650mm | Total G. Weight: | 11945kg |
| Curb Weight: | 6825kg | Payloading: | 4990kg |
| Dump Type: | Rear Dump | Max Speed: | 89KM/h |
| Front Overhang: | 1475mm | Rear Overhang: | 1700mm |
| Fuel Type: | Diesel | Engine Type: | YC6J180-33 |
| Gear Box: | 6Forwarder Gears,2reverse Gear | Max Power: | 136kw/180hp |
| Emission Level: | Eur.V | Max Torque: | 650N.m |
| Displacement: | 6500mL | Cab: | Flat Roof, Single Row Seat |
| Tyres: | 10.00R20 18PR | ||
| High Light: | 4WD Offroad Cargo Truck,210HP Offroad Cargo Truck,RHD 4wd dump truck |
||
RHD Type Off-Road Tipper Truck, 4WD Off-road Dump Trucks Light Duty 210HP Diesel Power
Offroad Cargo Truck Product Detailed Specification:
| Model | DFL3120B |
| Overall Size(mm) | 7375X2540X2800mm |
| Driving Form | 4x4 |
| Wheel Base(mm) | 3650mm |
| Wheel Track(mm) | 1857/1860mm (F/R) |
| Cargo box dimension | 4300x2340x800mm |
| G.V.W | 11945kg |
| Curb weight | 6825kg |
| Rated Loading Weight | 4990kg |
| Max Speed(km/h) | 89km/h |
| F/R Overhang | F/R 1475/1700mm |
| Fuel Type | Diesel |
| Cab | 3/2 seats, flat roof |
| Engine Model | YC6J180-33 |
| Power(Kw/HP) | 136 |
| Maximum torque(N.m) | 650 |
| Displacement(L) | 6.5L |
| Emission Standard | Euro V |
| Transmission | 5Forwarder Gears, Manual type |
| Axle Loading(kg) | 3885/8060kg |
| Tires | 10.00R20 18PR |
| Spring Number | 8/10+8,11+9 |
Products Description:
Dongfeng Tianjin right-hand four-wheel drive off-road dump truck is suitable for countries and regions with right-hand drive habits.
The actual load is 10-15 tons, and the specific load is matched according to the actual configuration

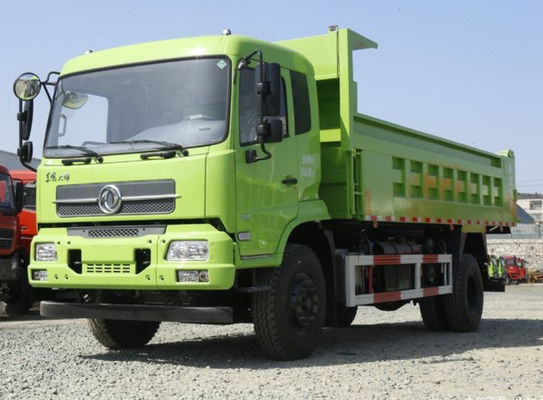

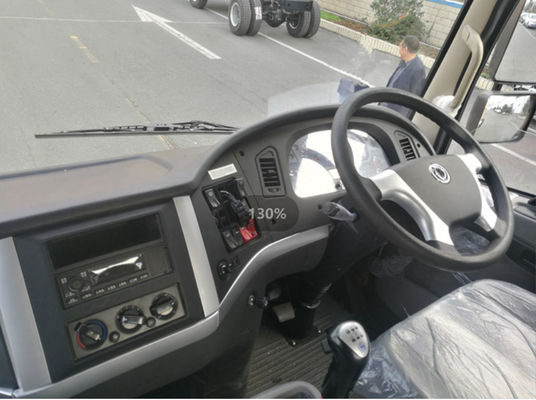

Products HD pictures:
Packing and Shipping:
FQA:
Q: How many trucks does your factory produce per years?
A: Almost 3000 units
Q:How about the warranty?
A:One year and exact depends on final model~
Q:How about the delivery time?
A: Most of our trucks are all have in stock ,We can delivery to you within 7 days after order confrimed
Q:How about shipping ?
A: Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container, small type can shipping by container ,
Pls contact us to get a shipping quotation .
Q: How about your product After-sales service system?
A: Our main export country have accepted after-sales service,some of country used the third department service.
Q: Do you accept Custom orders? What's is your MOQ order?
A: Yes, we do, our MOQ is depends on exact model, mostly is 1unit.
Q:Which country do you have exported to?
A: our special trucks can be found in many parts of the world, such as Russia, Ukraine,Uzbekistan,Jordan, Chile, Brazil, Thailand, Malaysia, Lebanon etc, and gain good reputation from local market.
