Product Details:
|
| Overall Size: | 8500X2500X3300mm | Driving Form: | 4*2 |
|---|---|---|---|
| G.V.W: | 18000kg | Curb Weight: | 10400kg |
| Rated Loading: | 7470kg | Wheel Base: | 4200mm |
| F/R Tread: | 1876/1820mm | Max Speed: | 85km/h |
| Fuel Type: | Diesel Engine | Engine Type: | DDi50E190-60 |
| Max. Power: | 147kw/190hp | Max Torque: | 800N.m |
| Displacement: | 5900ml | Emission Level: | Eur.III |
| Cab: | 2~3seats, One And Half Row | Tyres: | 10.00R20 18PR,275/80R22.5 18PR,6pcs |
| High Light: | 8CBM Garbage Disposal Truck,7470kg Garbage Disposal Truck,Dongfeng waste compactor truck |
||
Compact Garbage Truck , 8CBM Garbage Delivery Truck with Dongfeng Brand Chassis
Garbage Product Detailed Specification:
| Vehicle parameters | ||||
| Vehicle Model | HLW5185ZYSD6 | Vehicle Type | Compacted Gabage truck | |
| Overall dimensions | 8500X2500X3300mm | Curb weight | 10400kg | |
| Total Veight | 18000kg | Rated Capacity | 7470kg | |
| F/R overhang | 1400/2600mm | Gabage Volume | 8-10CBM(As reqeust) | |
| Chassis parameters | ||||
| Chassis model | DFH1180EX8 | Chassis brand | DONGFENG | |
| Overall dimensions | 7090X2370X2750mm | Wheel base | 4200mm | |
| Front/rear wheel track | 1876/1820mm | Front/Rear Axle | 6500/11500kg | |
| Approach/departure angle | 27/20° | Maximum speed | 89km/h | |
| Cab | Configuration | A row and a half cab,3 passengers allowed, air conditioner. | ||
| Color | White, or as request | |||
| Engine | Model | DDi50E190-60 | ||
| Emission | Euro V | |||
| Type | 4 cylinders, in-line,EGR(cool)+DOC+DFP+SCR+ASC, diesel engine | |||
| Rated power | 147kw/190hp, rated power speed 2300rpm | |||
| Displacement | 5000ml | |||
| Max.torque | 800N.m | |||
| Tire | Size | 10.00R20 18PR,275/80R22.5 18PR | ||
| Number | 6+1 nos | |||
Garbage Truck HLW5185ZYSD6 Description:
1. The main special device of this truck is composed of a box and a compression system, which is used for garbage collection and transportation The car can be equipped with square or arc box, full sealing cover device and rear working device; ① No feeding device ② fully sealed bucket device and swing arm device:; ③ Bucket turning device and bucket turning device. Only 4500mm, 4700mm wheelbase is used 2. The side protective material is Q235, which is connected by bolts; The rear guard is replaced by a special device, and the lower edge is 360mm.3 above the ground. The cab is optional with the chassis. The driving recorder with satellite positioning function is installed. Etc on-board device can be optional for this model

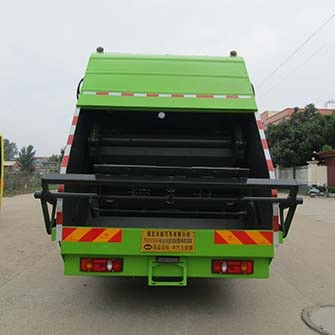

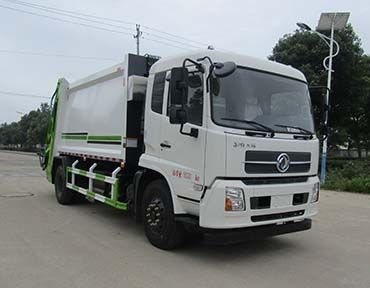

Products HD pictures:
Packing and Shipping:
FQA:
Q:How about the delivery time?
A: Most of our trucks are made to new order, so the delivery time is usually 20~45days.
Q:How about shipping ?
A: Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container, small type can shipping by container ,
Pls contact us to get a shipping quotation .
Q: How many trucks does your factory produce per years?
A: Almost 3000 units one month.
Q: How about your product After-sales service system?
A: Our main export country have accepted after-sales service,some of country used the third department service.
Q: Do you accept Custom orders? What's is your MOQ order?
A: Yes, we do, our MOQ is depends on exact model, mostly is 1unit.
Q:Which country do you have exported to?
A: our special trucks can be found in many parts of the world, such as Russia, Ukraine,Uzbekistan,Jordan, Chile, Brazil, Thailand, Malaysia, Lebanon etc, and gain good reputation from local market.
