Product Details:
|
| Overall Size: | 7700×2500×3100,3050mm | Driving Form: | 4*2 |
|---|---|---|---|
| Total Weight: | 18000kg | Curb Weight: | 8700kg |
| Rated Loading: | 9170/9105kg | Wheel Base: | 3600mm |
| F/R Tread: | 1862mm/1806mm | Maximum Speed: | 105km/h |
| Fuel Type: | Diesel Engine | Engine Type: | B6.2NS6B210 |
| Max. Power: | 154kw/210hp | Max Torque: | 850N.m |
| Displacement: | 6200ml | Emission Level: | Eur.V |
| Cab: | 2~3seats | Tyres: | 295/80R22.5 18PR,6pcs |
| High Light: | 3Ton Garbage Disposal Truck,Dump Garbage Disposal Truck,3Ton recycling dump truck |
||
Light Duty Chassis Dump Garbage Truck, Garbage Collection Dumper Truck with 2-3Ton capacity
Garbage Product Detailed Specification:
| Vehicle parameters | ||||
| Vehicle Model | HLW5180ZWX6EQ | Vehicle Type | Gabage Dump Truck | |
| Overall dimensions(mm) | 7700×2500×3100,3050 | Curb weight | 8700kg | |
| Total Veight | 18000kg | Rated Capacity | 9170/9105kg | |
| F/R overhang | 1055/1000mm | Gabage Box Size | 5200×2100×1450mm | |
| Chassis parameters | ||||
| Chassis model | EQ1185LJ9CDE | Chassis brand | DFAC | |
| Front Wheel Track | 1862mm | Wheel base | 3600mm | |
| Rear wheel track | 1806mm | Axle Number | 2 axles | |
| Approach/departure angle | 19°/13° | Maximum speed | 105km/h | |
| Cab | Configuration | A row and a half cab,3 passengers allowed, air conditioner. | ||
| Color | White, or as request | |||
| Engine | Model | B6.2NS6B210 | ||
| Emission | Euro V | |||
| Type | Diesel Type, 6cylinders in-line | |||
| Rated power | 154kw/210hp, rated power speed 2300rpm | |||
| Displacement | 6200ml | |||
| Max.torque | 850N.m | |||
| Tire | Size | 295/80R22.5 18PR,10.00R20 18PR,275/80R22.5 18PR | ||
| Number | 6pcs | |||
Garbage Truck HLW5180ZWX6EQ Description:
This garbage turck is mainly used for sludge transportation, and the unloading mode is post unloading; The side and rear protective devices are made of Q235, the side protection is connected by bolts, and the rear protection is connected by welding. The section size of the rear protection (mm): 130 × 90. Ground clearance of rear protection (mm): 450; Optional etc on-board device; A traveling data recorder with satellite positioning function is installed.

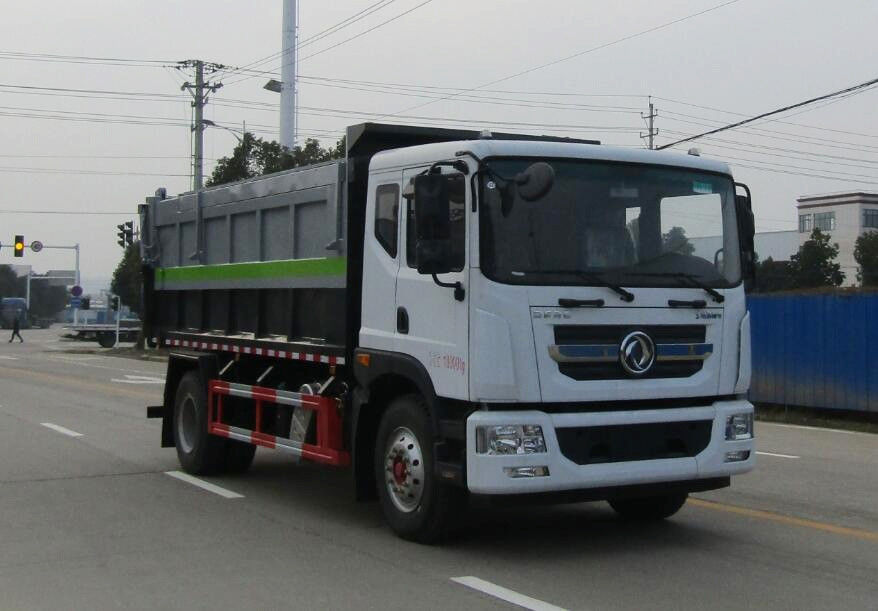

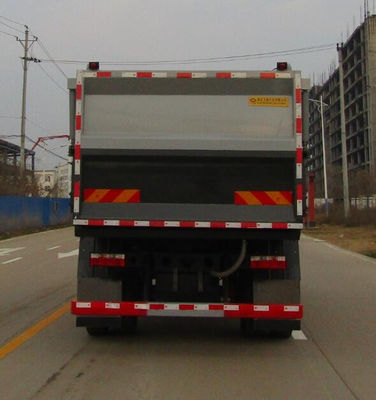

Products HD pictures:
Packing and Shipping:
FQA:
Q:How about the delivery time?
A: Most of our trucks are made to new order, so the delivery time is usually 20~45days.
Q:How about shipping ?
A: Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container, small type can shipping by container ,
Pls contact us to get a shipping quotation .
Q: How many trucks does your factory produce per years?
A: Almost 3000 units one month.
Q: How about your product After-sales service system?
A: Our main export country have accepted after-sales service,some of country used the third department service.
Q: Do you accept Custom orders? What's is your MOQ order?
A: Yes, we do, our MOQ is depends on exact model, mostly is 1unit.
Q:Which country do you have exported to?
A: our special trucks can be found in many parts of the world, such as Russia, Ukraine,Uzbekistan,Jordan, Chile, Brazil, Thailand, Malaysia, Lebanon etc, and gain good reputation from local market.
