Product Details:
|
| Overall Size: | 6443×2050×2650mm | Driving Form: | 4*2driving |
|---|---|---|---|
| Total Weight: | 7360kg | Curb Weight: | 5400kg |
| Rated Loading: | 1830kg | Wheel Base: | 4200mm |
| F/R Tread: | 1525/1498mm | Maximum Speed: | 110km/h |
| Fuel Type: | Diesel Engine | Engine Type: | D20TCIF1 |
| Max. Power: | 93kWkw/127hp | Max Torque: | 350N.m |
| Displacement: | 2000ml | Emission Level: | Eur.V |
| Cab: | Single Row Cab, 2passengers | Tyres: | No6pcs 7.00R16 |
| High Light: | Diesel Garbage Disposal Truck,Garbage Disposal Truck Compactor,110km/h Garbage Compactor Truck |
||
6m3 Garbage/Waste Collection Truck and Transfer Vehicle Barrel mounted garbage compactor truck
Garbage Product Detailed Specification:
| Vehicle parameters | ||||
| Vehicle Model | HTW5075ZYSE6 | Vehicle Type | Gabage Compact Truck | |
| Overall dimensions(mm) | 6443×2050×2650mm | Curb weight | 5300kg | |
| Total Veight | 7360kg | Rated Capacity | 1930kg | |
| F/R overhang | 1055/800mm | Gabage Volume | 6cubic | |
| Chassis parameters | ||||
| Chassis model | EQ1075SJ3CDF | Chassis brand | DFAC | |
| Front Wheel Track | 1525mm | Wheel base | 2700mm | |
| Rear wheel track | 1498mm | Axle Number | 2 axles | |
| Approach/departure angle | 27.7°/15° | Maximum speed | 110km/h | |
| Cab | Configuration | Single row cab,2~3 passengers allowed, air conditioner. | ||
| Color | White, or as request | |||
| Engine | Model | D20TCIF1 | ||
| Emission | Euro V | |||
| Type | Diesel Type, in-line 4cylinders | |||
| Rated power | 93kWkw/127hp, rated power speed 3200rpm | |||
| Displacement | 2.2L | |||
| Max.torque | 350N.m | |||
| Tire | Size | 7.00R16 | ||
| Number | 6pcs | |||
Garbage Truck HTW5075ZYSE6 Description:
- The main device of the vehicle is composed of a box and a compression system, which is used for garbage collection and transportation. The vehicle only uses a 3308mm wheelbase chassis, and the corresponding relationship between the optional working device and the contour length (mm)/rear extension (mm)/curb weight (kg): 6840/1677/5630 for the bucket tipping device, 6600/1437/5630 for the swing arm device, 6650/1487/5630 for the fully sealed bucket device, 6443/1280/5300 for the optional non-loading device, 6840/1677/5430 for the semi-sealed bucket device;
- The side protection material is Q235, which is connected by bolts; The rear guard is replaced by a device, and the lower edge is 495mm above the ground;
- The vehicle can be equipped with a rear sealing cover device. ABS model/manufacturer: ABS/ASR-12V-4S/4M/Xiangyang Dongfeng Longcheng Machinery Co., Ltd. The corresponding relationship of engine/fuel consumption value L/100km: D20TCIF1/16.2, YCY24140-60/16.2, CA4DB1-11E6/16.2, ZD30D16-6N/16.2, CY4BK461/16.2, CY4BK161/16.2. Optional front mask, front bumper and front combination lamp. Optional left and right fuel tank position.

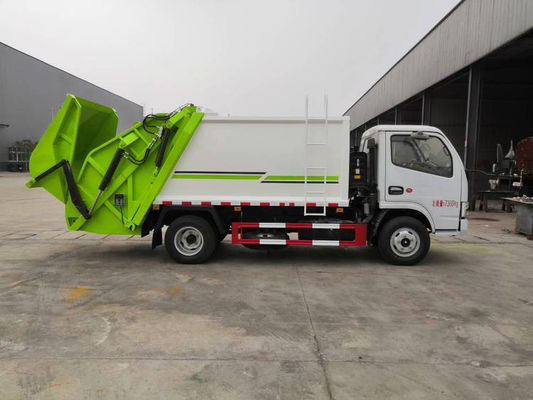

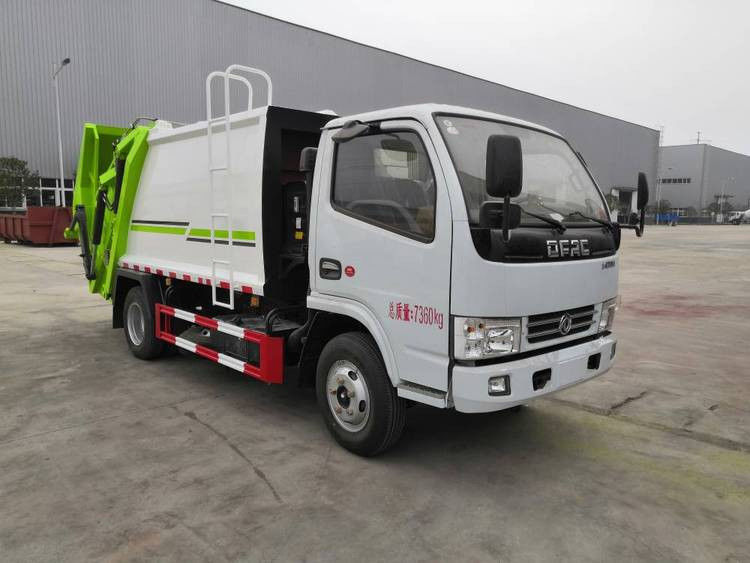

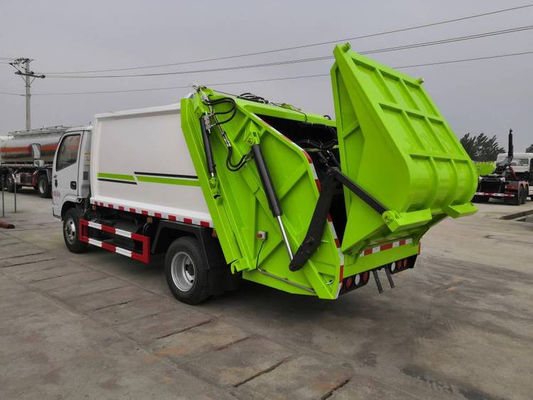

Products HD pictures:
Packing and Shipping:
FQA:
Q:How about the delivery time?
A: Most of our trucks are made to new order, so the delivery time is usually 20~45days.
Q:How about shipping ?
A: Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container, small type can shipping by container ,
Pls contact us to get a shipping quotation .
Q: How many trucks does your factory produce per years?
A: Almost 3000 units one month.
Q: How about your product After-sales service system?
A: Our main export country have accepted after-sales service,some of country used the third department service.
Q: Do you accept Custom orders? What's is your MOQ order?
A: Yes, we do, our MOQ is depends on exact model, mostly is 1unit.
Q:Which country do you have exported to?
A: our special trucks can be found in many parts of the world, such as Russia, Ukraine,Uzbekistan,Jordan, Chile, Brazil, Thailand, Malaysia, Lebanon etc, and gain good reputation from local market.
