Product Details:
|
| Type: | Tractor Truck/Trailer | Driving Form: | 6x4 |
|---|---|---|---|
| Wheel Base: | 3300+1350mm | G.V.W: | 25T |
| Curb Weight: | 8.8T | Total Towing Weight: | 40T |
| Max Speed: | 110km/h | Front Axle Loading: | 7000kg |
| Rear Axle Loading: | 18000kg | Fuel Type: | Diesel |
| Engine Type: | ISZ480 51 | Max. Power: | 353kW |
| Max Torque: | 2330N·m | Displacement: | 13L |
| Emission Level: | Eur.V | Gear Box: | 12JSD240TA |
| Cab: | High Roof,double Sleeper | Tyres: | 12R22.5 16PR, 10pcs |
| High Light: | 40T cap tractor 6x4,CNG cap tractor 6x4,6x4 cng powered trucks |
||
DF 40T Towing Weight Heavy Duty Tractor Truck, Truck Tractor of 6x4 Drivign Form
Tractor Truck Product Detailed Specification:
| Model | DFH4251AX4AV |
| Overall Dimension | 6960*2500*3770mm |
| Driving Form | 6x4 |
| Wheel Base | 3300+1350mm |
| G.V.W | 25T |
| Curb weight | 8.8T |
| Total Towing Weight | 40T |
| Max Speed | 110km/h |
| Wheel Track | 2040mm/ 1840mm |
| Fuel Type | Diesel |
| Cab | One&Half Row,double sleeper |
| Engine Model | ISZ480 51 |
| Power(Kw/HP) | 353/480 |
| Maximum torque(N.m) | 2330 |
| Displacement(L) | 13 |
| Emission Standard | Euro V |
| Transmission | 12JSD240TA, 12Forward Gears |
| F/R axle Loading | 7000/18000kg |
| Rear Axle Ratio | 3.42 |
| Tires | 12R22.5 16PR, 10pcs |
| Oil Tunk Volume(L) | Alum.750L |
| Spring Numbers | 10/13 |

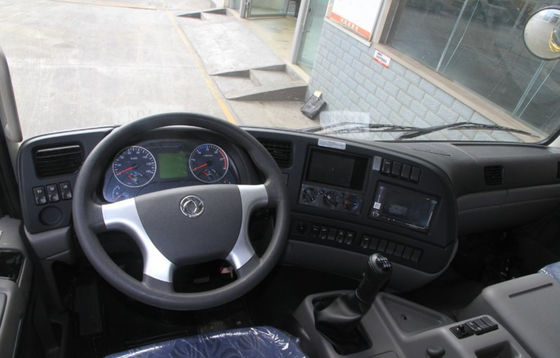

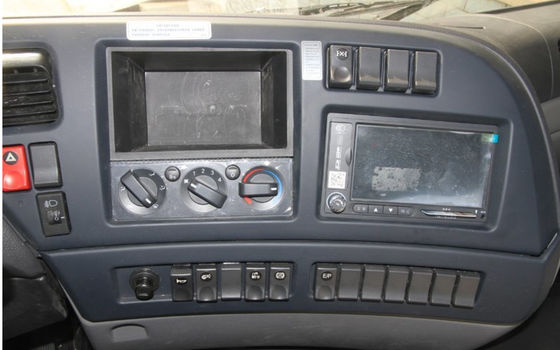

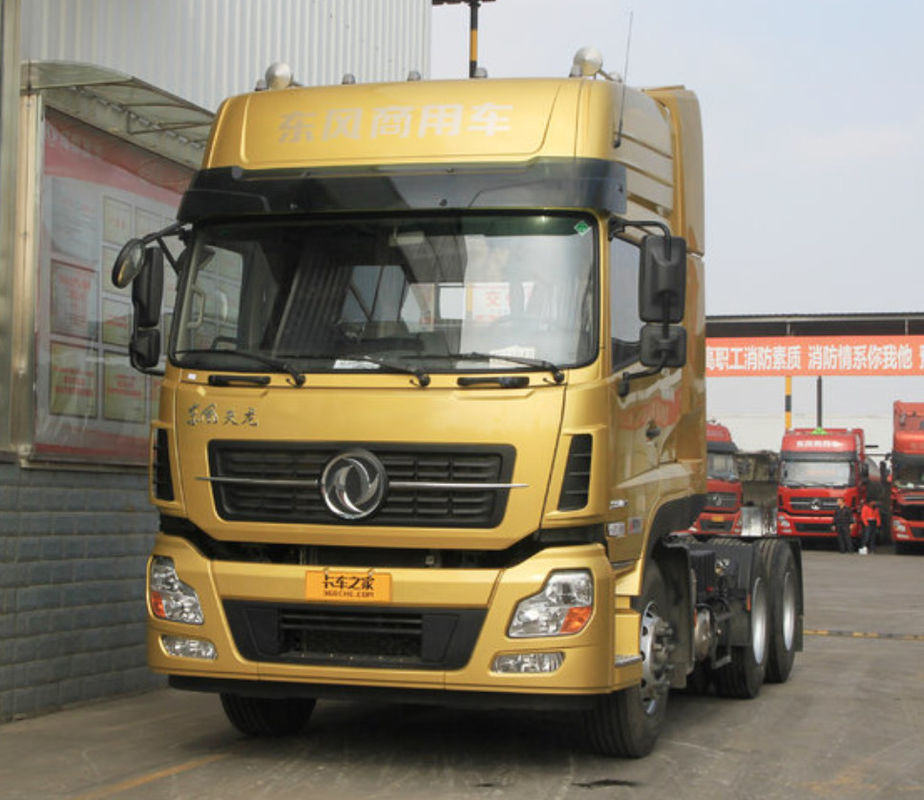

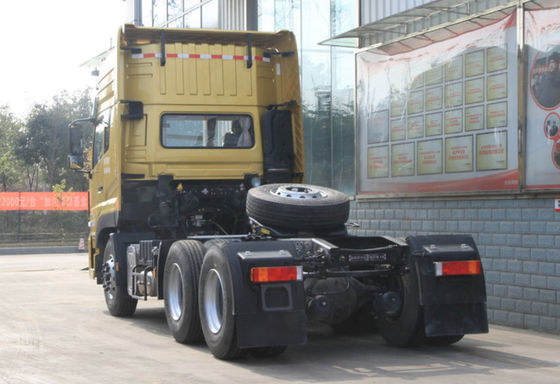

Products HD pictures:
Proudct Features:
The highly reinforced cab design meets the latest European safety standards. The collision test meets the European ECE and the most demanding Swedish VVFS safety regulations. It provides strong protection for both driver and passenger.
High-roof double-sleeper cab. All welded steel-top, passive safety, the frame body-in-white, collision meets the requirements of European ECE safety regulations, electric tilting cab, adjustable airbag on driver seat, automatic air conditioning, electric heated rear-view mirror, electrically adjustable headlamps, front window wiper and washer, power-operated windows, airbag, external sun visor, central locking.
Packing and Shipping:
FQA:
Q:What's your warranty?
A:One year basically and exact depends on different model.
Q:How about the delivery time?
A: Most of our trucks are all have in stock ,We can delivery to you within 7 days after order confrimed
Q:How about shipping ?
A: Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container, small type can shipping by container ,
Pls contact us to get a shipping quotation .
Q: How many trucks does your factory produce per years?
A: Almost 3000 units
Q: How about your product After-sales service system?
A: Our main export country have accepted after-sales service,some of country used the third department service.
Q: Do you accept Custom orders? What's is your MOQ order?
A: Yes, we do, our MOQ is depends on exact model, mostly is 1unit.
Q:Which country do you have exported to?
A: our special trucks can be found in many parts of the world, such as Russia, Ukraine,Uzbekistan,Jordan, Chile, Brazil, Thailand, Malaysia, Lebanon etc, and gain good reputation from local market.
