Product Details:
|
| Overall Size: | 3475×1375×1550mm | Wheel Base: | 2315mm |
|---|---|---|---|
| Cabin Type: | Single Row Type, 2passengers | Max. Climbing Ability: | 20% |
| Curb Weight: | 710kg | Rated Loading: | 500kg |
| Max. Towing Capacity: | 2000kg | Highest Speed: | 40-45km/h |
| Endurance Mileage: | 120KM | Min. Ground Clearance: | >150mm |
| Motor Type: | AC | Rated Power: | 4KW |
| Battery Type: | Lead Acid AGM | Battery Voltage: | 72V / 100Ah |
| High Light: | Electric 4wd compact trucks,Light 4wd compact trucks,4WD electric light truck |
||
2passengers Small Electric Pick up, EV pickup truck, 45km low speed 20% Climbing Ability
Product Detailed Specification:
| Models | Classic 4kW |
| BASIC SPECS | |
| VEHICLE DIMENSIONS | |
| LxWxH (mm) | 3475x1375x1550mm |
| Wheelbase (mm) | 2315 |
| Cargo box dimension | 1620x1245x300mm |
| Vehicle Gross Weight (kg) | 710 |
| Payload (kg) | 500 |
| Towing Capacity (kg) | 2,000 |
| Passengers | 2seats |
| PERFORMANCE | |
| Top Speed (km/h ) | 40 ~45 |
| Maximum Grade (%) | 20 |
| Minimum Turning Radius (m ) | ≤9 |
| Minimum Ground Clearance (mm) | ≥150 |
| Approach Angle | ≥55 |
| Departure Angle | ≥35 |
| BATTERY & MOTOR | |
| Battery Specs | 72V / 100Ah |
| Battery Type | Lead Acid AGM |
| Charging Time | 8~10h |
| Max,Driving Range (km/m) | 120 / 74.57 |
| Motor Type | AC |
| Total Power | 4000W |
| Motor Controller | CAN |
| BODY STRUCTURE | |
| Cabin Body | Stamped Steel |
| 2 seats | |
| CHASSIS & WHEELS | |
| Drive Type | 2WD, Rear Drive |
| Front Suspension | Double Wishbone Independent Suspension |
| Rear Suspension | Leaf Plate Suspension (5 pieces) |
| Drive Axle | Integrated (Speed ratio12.76) |
| Brake (front/rear) | Discs / Drums |
| Wheel Hub | 12X4B(Steelies 4X114.3) |
| Tire Specification | 145 R12LT |
| Steering Type | Rack & Pinion |
| Steering Assist | △ |
| Brake Assist | ▲ |
Products Features:
- As a professional all terrain electric pickup, the intelligent control system and super strong motor configuration
enable pickman to have a strong "heart". Together with the platform "Tiangong" four-wheel independent suspension
system, it brings outstanding power and smooth driving experience
- "Shape reflects function" -- this is the design concept of pickman'
- Under the fine and reasonable structure, the body shape of pickman has reached the golden ratio, and the
overall posture is stable and dynamic.
- The use of new materials allows us to better "subtract" - the reduction in the number of parts makes you feel
that it is "complete", the body is light and strong, and it can run farther, and you do not need to worry about safety.

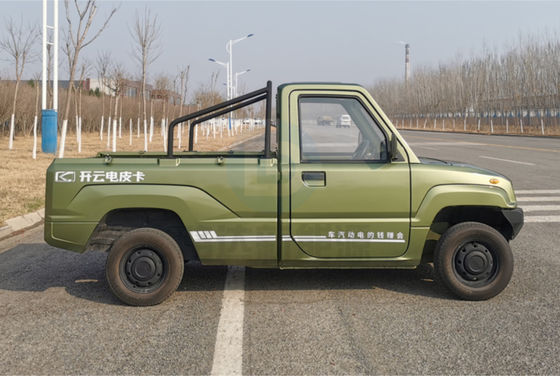

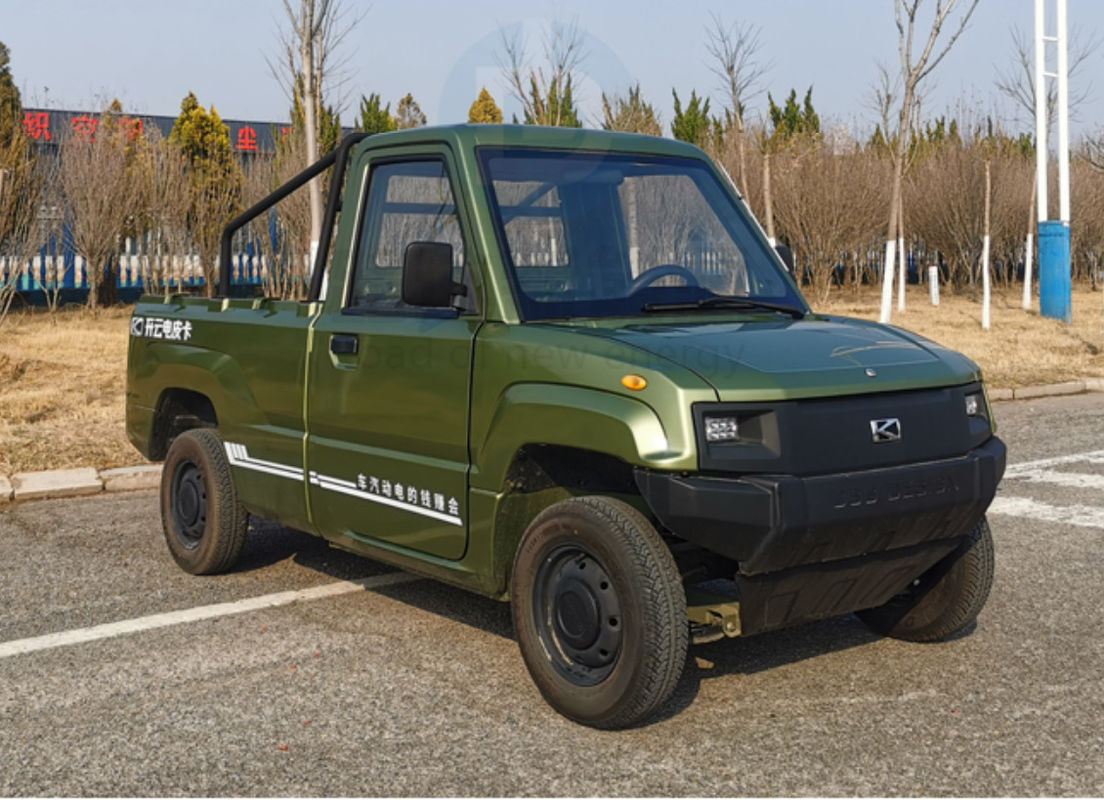

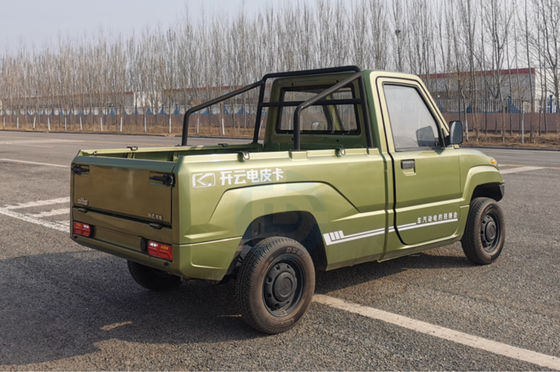

Products HD pictures:
Reference Vedio"
Customers View:
Company Profile:
Wuhan Essence Tech Co.,Ltd is a trading comany who has been focus on Automotive exporting more than 5years. We cooperates deeply with many big and famous Manufacturers of Vehicle sush as DONGFENG, Changan, Chuanqi and Chevrolet, on the sales of their Passenger cars, commercial cars and also the special use vehicles. Basing on the hard work during past years, we have successfully exported the full series vehicle of these brands to Egypt, Colombia, Kazakhstan, Russia, Algeria, Lebanon, Sudan and Jordan etc. countries which have gained good reputation locally. It has gained a good reputation locally.
From the first day of setting up, we always adhered to the to the principle of "providing customers with cost-effective products" and the concept of " Win-Win with Customers", to make more people around the world to know, to understand, recognize and support Chinese Vehicles.
We adopt 5A mode management , control the products quality strictly, set up the complete sourcing and supplying system, to make sure our customers can be served with the shortest delivery time, most competitive price and best quantity vehicles. Now, at this moment of the alternation of new and old energy vehicles, we are willing to cooperate with the cooperators all over the world to create our new time together.
Packing and Shipping:
FAQ:
Q: Do you accept Custom orders? What's is your MOQ order?
A: Yes, we do, our MOQ is depends on exact model, mostly is 1unit.
Q:How about the warranty?
A:One year for motor and battery.
Q:How about the delivery time?
A: Most of our trucks are all have in stock ,We can delivery to you within 7 days after order confrimed
Q:How about shipping ?
A: Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container, small type can shipping by container ,
Pls contact us to get a shipping quotation .
Q: How many trucks does your factory produce per years?
A: Almost 150000 units
Q: How about your product After-sales service system?
A: Our main export country have accepted after-sales service,some of country used the third department service
Q:Which country do you have exported to?
A: our special trucks can be found in many parts of the world, such as Russia, Ukraine,Uzbekistan,Jordan, Chile, Brazil, Thailand, Malaysia, Lebanon etc, and gain good reputation from local market.
Contact Person: Jackie Shaw
