Product Details:
|
| Overall Size: | 4730×1670×2400mm | Wheel Base: | 3050mm |
|---|---|---|---|
| Seats: | 2/3 | Curb Weight: | 1599kg |
| Highest Speed: | 80km/h | Rated Mileage: | WLTC 280km |
| Rated Loading: | 871kg | Motor: | Permanent Magnet Synchronous Motor |
| Motor Output Power: | 30/60KW | Battery Type: | Lithium Iron Phosphate Battery |
| Battery Capacity: | 38.7KWH | ||
| High Light: | EC31 Cargo Container Truck,1.0T Cargo Container Truck,Y2023 refrigerated food trucks |
||
Product Detailed Specification:
| Chassis model | EC31 | Chassis brand | DFSK | |
| Overall dimensions | 4730×1670×2400mm | Wheel base | 3050mm | |
| Front/rear wheel track | 1410/1410mm | Front/rear suspension | ||
| Approach/departure angle | 38/23 | Maximum speed | 80km/h | |
| Cab | Configuration | Single row cab,2passengers,Air Conditioner,with remote key, reversing vision; | ||
| Color | White,other color is optional | |||
| Motor& Battery |
Motor type | Permanent Magnet Synchronous Motor | ||
| Rated power | 30kW | |||
| Peak Power | 60KW | |||
| Max.torque | 200N·m | |||
| Battery Capacity | 38.7KWH | |||
| Battery Chiarging | 1.5h/8hs(Fast & Slow) | |||
| Max Mileage | 215km (WLTC) | |||
| Tire | Size | 185R14LT 8PR | ||
| Number | 4pcs | |||
| Front axle | 1000kg | |||
| Rear axle | 1600kg | |||
| Drive form | 4x2 | |||
| Number of leaf spring | -/6 | |||
| Steering device | Power assisted steering | |||
| Steering wheel | Left hand drive | |||
| Van body structure parameters | ||||
| Van dimensions | 2660×1450×1430mm | Loading capacity | 871kg | |
| Van material(inner) | Glass Steel | Van material(outer) | Glass Steel | |
| Insulation Layer | Polyurethane foam | Thickness of insulation layer | 6.5CM | |
| Temperature | -20°C-+12°C | |||
| Standard configuration | Chassis,sub frame,van body(glass steel panel+6.5cm polyurethane foam& Polystyrene insulation),stainless steel locks,stainless steel door frame,with overhead light and domestic refrigeration unit; Double opened back door; | |||

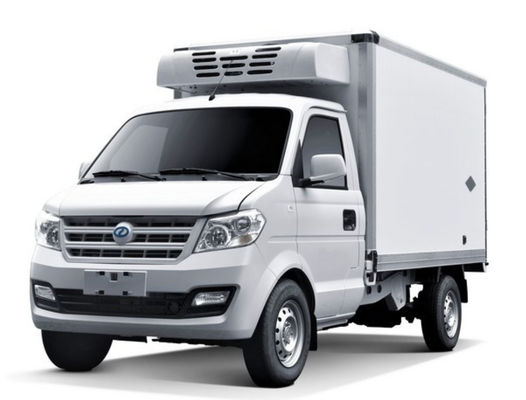

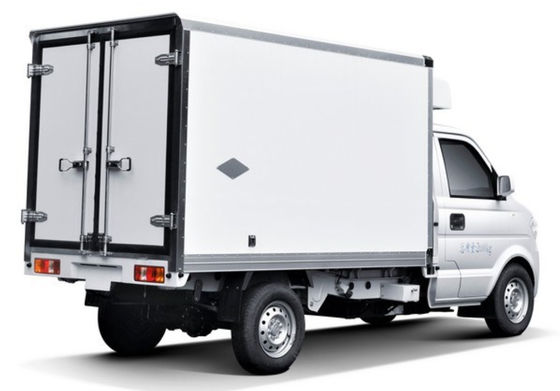

Products HD pictures:
Products Features:
Company Profile:
Wuhan Essence Tech Co.,Ltd is a trading comany who has been focus on Automotive exporting more than 5years. We cooperates deeply with many big and famous Manufacturers of Vehicle sush as DONGFENG, Changan, Chuanqi and Chevrolet, on the sales of their Passenger cars, commercial cars and also the special use vehicles. Basing on the hard work during past years, we have successfully exported the full series vehicle of these brands to Egypt, Colombia, Kazakhstan, Russia, Algeria, Lebanon, Sudan and Jordan etc. countries which have gained good reputation locally. It has gained a good reputation locally.
From the first day of setting up, we always adhered to the to the principle of "providing customers with cost-effective products" and the concept of " Win-Win with Customers", to make more people around the world to know, to understand, recognize and support Chinese Vehicles.
We adopt 5A mode management , control the products quality strictly, set up the complete sourcing and supplying system, to make sure our customers can be served with the shortest delivery time, most competitive price and best quantity vehicles. Now, at this moment of the alternation of new and old energy vehicles, we are willing to cooperate with the cooperators all over the world to create our new time together.
Packing and Shipping:
FQA:
Q:How about the warranty?
A:One year
Q:How about the delivery time?
A: Most of our trucks are all have in stock ,We can delivery to you within 7 days after order confrimed
Q:How about shipping ?
A: Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container, small type can shipping by container ,
Pls contact us to get a shipping quotation .
Q: How many trucks does your factory produce per years?
A: Almost 3000 units
Q: How about your product After-sales service system?
A: Our main export country have accepted after-sales service,some of country used the third department service.
Q: Do you accept Custom orders? What's is your MOQ order?
A: Yes, we do, our MOQ is depends on exact model, mostly is 1unit.
Q:Which country do you have exported to?
A: our special trucks can be found in many parts of the world, such as Russia, Ukraine,Uzbekistan,Jordan, Chile, Brazil, Thailand, Malaysia, Lebanon etc, and gain good reputation from local market.
