Product Details:
|
| Overall Dimension: | 8210*2500*3270mm | G.V.W: | 12520kg |
|---|---|---|---|
| Curb Weight: | 8600kg | Wheel Base: | 3850mm |
| Max Speed: | 100km/h | Front Tread: | 2037,2076mm |
| Rear Tread: | 1873mm | Fuel Type: | Diesel |
| Engine Type: | YCK05230-60 | Rated Power: | 169KW |
| Max Torque: | 840N.m | Emission Level: | Eur.V |
| Displacement: | 5.13L | Rated Seats: | 33+1 |
| Tyres: | 9R22.5, 6pcs | ||
| High Light: | Diesel king long city bus,169KW king long city bus,169KW City Tour Bus |
||
Tour Passenger 8m Diesel Coach Bus, 34 seats Diesel City Bus Euro VI Emission Level
Diesel City Bus Product Detailed Specification:
| Model | XMQ6825CY |
| Basic Parameter | |
| Overall Size | 8210*2500*3270mm |
| Rated Seats | 33+1 |
| Curb Weight | 8600kg |
| G.V.Weight | 12520kg |
| Max Speed | 100km/h |
| Tyre | 9R22.5 |
| Chassis Specification | |
| F/R Overhang | F/R 1870/2490mm |
| Spring No. | -/-,8/11,7/10,6/10,3/4 |
| Wheel base | 3850mm |
| Wheel Track | 2037,2076mm/1873mm |
| Angle of Approaching &Leaving | 11/9° |
| Engine Data | |
| Engine Model | YCK05230-60,WP4.6NQ220E61 |
| Rated/Max Power(kw) | 169kW |
| Rated/Max.Torque/roll(N.m) | 840N.m |
| Displacement(L) | 5.13L |
| Partial configuration | |
| Body Structure | Fully Stamping type |
| Floor surface | Standard Vinyl floor covering |
| Windows | Fully enclosed tempered adhesive side window (with 4pcs emergency glass breaker) |
| Door | Pneumatic swing out passenger door |
| Bus PC | Y |
| Full around wall anti-collision strip | Y |
| Four channel monitoring system | Y |
| On Board USB Hole | Y |
| Manual LCD display | 18.5" |
| Panoramic sunroof | Y |
| Interior atmosphere lamp | Y |
Diesel City Bus 6905AY Products Features:
The domineering shape, comfortable space and safety are another evolution of the Jieguan family, which is the
Jieguan 3T. At the same time, Jieguan 3T has made improvements in body structure, safety configuration, convenient
maintenance and fuel saving performance, and has met the diversified needs of the China Brazil market with its
unique cost performance advantages.

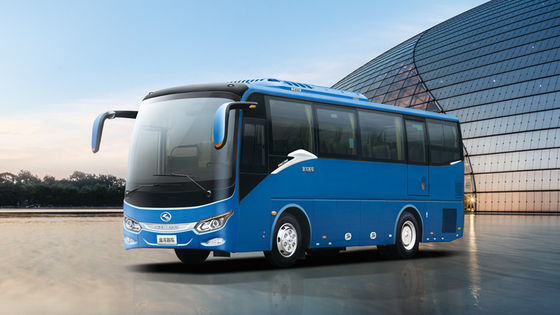

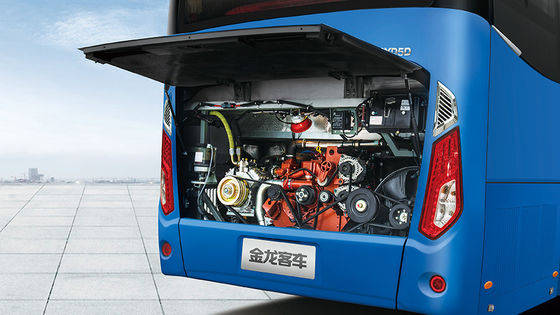

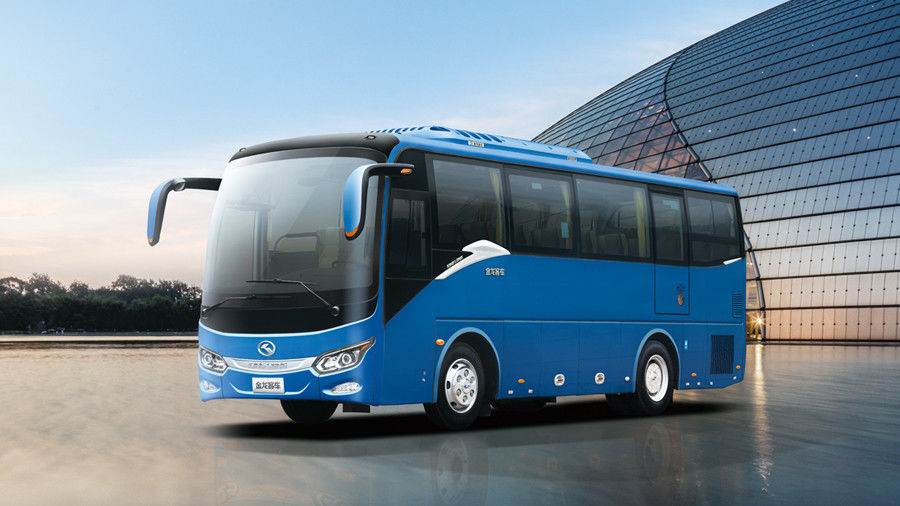

Products HD pictures:
Kinglong Introduction:
Incorporated in December 1988, Xiamen King Long United Automotive Industry Co., Ltd is a subsidiary of Xiamen King Long Motor Group (stock code: 600686). In 2021, King Long’s brand value reached 59.285 billion yuan, ranking among the top brands in China’s automobile industry. King Long possesses three production bases: Xiamen Large & Medium-Sized Bus Base, Xiamen Van Manufacturing Base, and Shaoxing Special Vehicle Base. The annual production capacity is 20000 units for large and medium-sized buses and 30000 units for minivans. King Long boasts the most complete intelligent transportation product line in the industry, covering large, medium, and light buses, autonomous driving buses and chassis, special vehicles, RVs, and all kinds of Pan travel products. The total number of buses produced by King Long has exceeded 500,000, of which more than 120,000 are exported overseas to more than 140 countries and regions worldwide. King Long enjoys high brand awareness and reputation at home and abroad thanks to its involvement and professional service in many major events at home and abroad, including the China Two Sessions, the 2008 Beijing Olympic Games, the 2010 World Expo, the 2012 London Olympic Games, the 2017 BRICS Xiamen Summit, the 2018 World Cup and the APEC Summit in Papua New Guinea, etc.
Packing and Shipping:
FQA:
Q: What is your warranty?
A:One year or 30000km
Q:How about the delivery time?
A: Most of our trucks are all have in stock ,We can delivery to you within 7 days after order confrimed
Q:How about shipping ?
A: Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container, small type can shipping by container ,
Pls contact us to get a shipping quotation .
Q: How many trucks does your factory produce per years?
A: Almost 3000 units per year.
Q: How about your product After-sales service system?
A: Our main export country have accepted after-sales service,some of country used the third department service.
Q: Do you accept Custom orders? What's is your MOQ order?
A: Yes, we do, our MOQ is depends on exact model, mostly is 1unit.
Q:Which country do you have exported to?
A: our special trucks can be found in many parts of the world, such as Russia, Ukraine,Uzbekistan,Jordan, Chile, Brazil, Thailand, Malaysia, Lebanon etc, and gain good reputation from local market.
