Product Details:
|
| Overall Size: | 5950×2000×2300mm | Driving Form: | 4*2 |
|---|---|---|---|
| Gross Weight: | 7360kg | Curb Weight: | 3990kg |
| Rated Loading: | 3240kg | Wheel Base: | 2950mm |
| F/R Tread: | 1519/1516mm | High Speed: | 110km/h |
| Fuel Type: | Diesel Type | Engine Type: | CA4DB1-11E6 |
| Max. Power: | 81kw/110hp | Max Torque: | 280N.m |
| Displacement: | 2.2L | Emission Level: | Euro V |
| Cab: | Single Row With 2~3seats | Tyres: | 7.00R16,7.00R16LT; |
| High Light: | 110hp trash dump truck,Garbage trash dump truck,110hp front loader dump truck |
||
Heavy Duty Dump Garbage Truck Rear Dump Garbage Tipper with 5CBM Container Garbage Cabin
Garbage Truck Product Detailed Specification:
| Vehicle parameters | ||||
| Vehicle Model | HLW5071ZLJ6EQ | Vehicle Type | Gabage Dump Truck | |
| Overall dimensions(mm) | 5950×2000×2300mm | Curb weight | 3990kg | |
| Total Veight | 7360kg | Rated Capacity | 3240kg | |
| F/R overhang | 1055/1587mm | Gabage Box Size | 4000××1800×800mm | |
| Chassis parameters | ||||
| Chassis model | EQ1075SJ3CDF | Chassis brand | DFAC | |
| Front Wheel Track | 1519mm | Wheel base | 2950mm | |
| Rear wheel track | 1516mm | Axle Number | 2 axles | |
| Approach/departure angle | 27.7°/13° | Maximum speed | 110km/h | |
| Cab | Configuration | A row and a half cab,3 passengers allowed, air conditioner. | ||
| Color | White, or as request | |||
| Engine | Model | CA4DB1-11E6 | ||
| Emission | Euro V | |||
| Type | Diesel Type, in-line 4cylinders | |||
| Rated power | 81kw/110hp, rated power speed 3200rpm | |||
| Displacement | 2.2L | |||
| Max.torque | 280N.m | |||
| Tire | Size | 7.00R16,7.00R16LT; | ||
| Number | 6pcs | |||
Garbage Truck HLW5185ZYSD6 Description:
This Dump garbage truck is back unloading; The vehicle is used for garbage collection and transfer; Special devices: car body and self unloading device; Optional car body and rear structure; Side / rear protective material: Q235, connection method: bolt connection, rear protective section size (high × Width (mm): 120 × 60, 450mm above the ground; The cab is optional with the chassis. The front mask, front bumper and front combination lamp are optional with the chassis. A row and a half of cabs are optional; This model can be equipped with etc on-board device and appearance style.

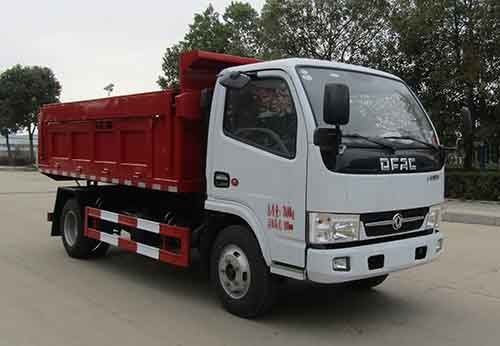

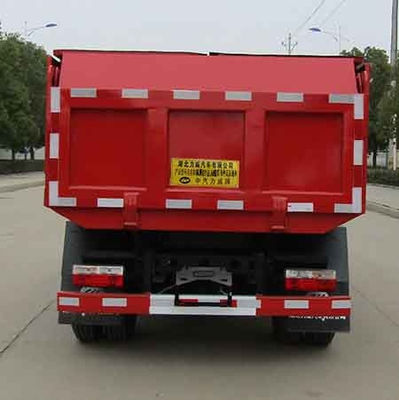

Products HD pictures:
Packing and Shipping:
FQA:
Q:How about the delivery time?
A: Most of our trucks are made to new order, so the delivery time is usually 20~45days.
Q:Which country have you exported to?
A: our special trucks can be found in many parts of the world, such as Russia, Ukraine,Uzbekistan,Jordan, Chile, Brazil, Thailand, Malaysia, Lebanon etc, and gain good reputation from local market.
Q:How about shipping ?
A: Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container, small type can shipping by container ,
Pls contact us to get a shipping quotation .
Q: How many trucks does your factory produce per years?
A: Almost 3000 units per year.
Q: How about your product After-sales service system?
A: Our main export country have accepted after-sales service,some of country used the third department service.
Q: Do you accept Custom orders? What's is your MOQ order?
A: Yes, we do, our MOQ is depends on exact model.
